Description
Specifications:

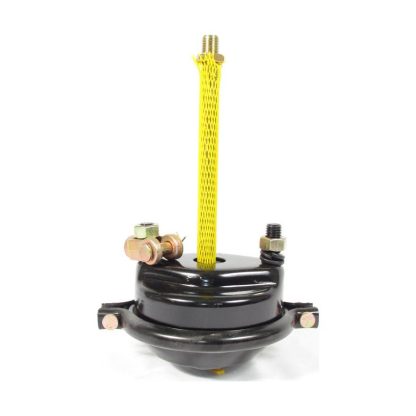

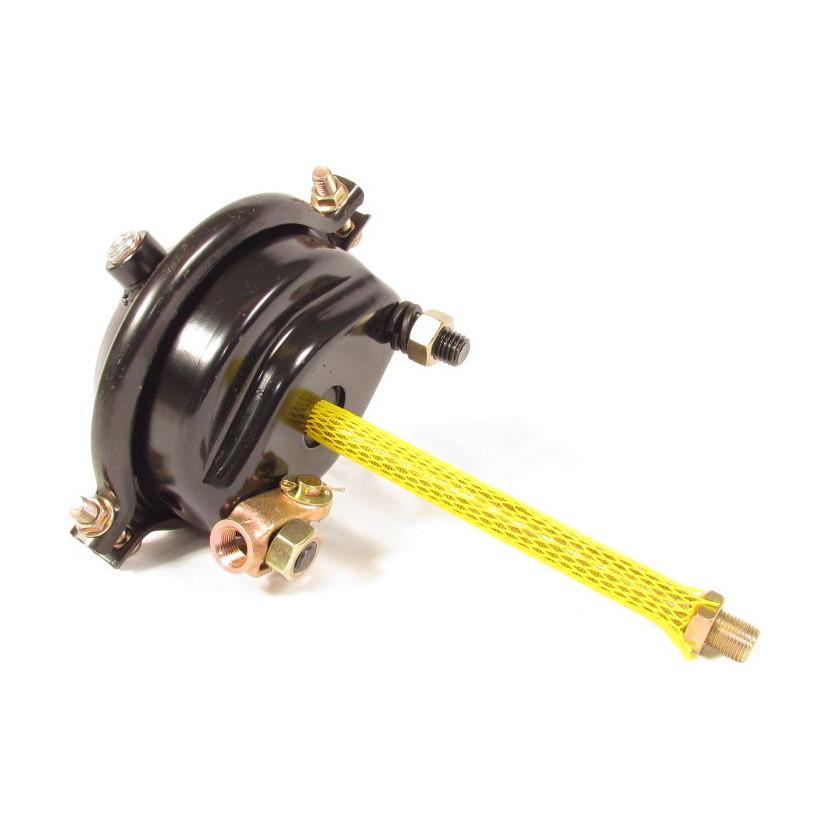

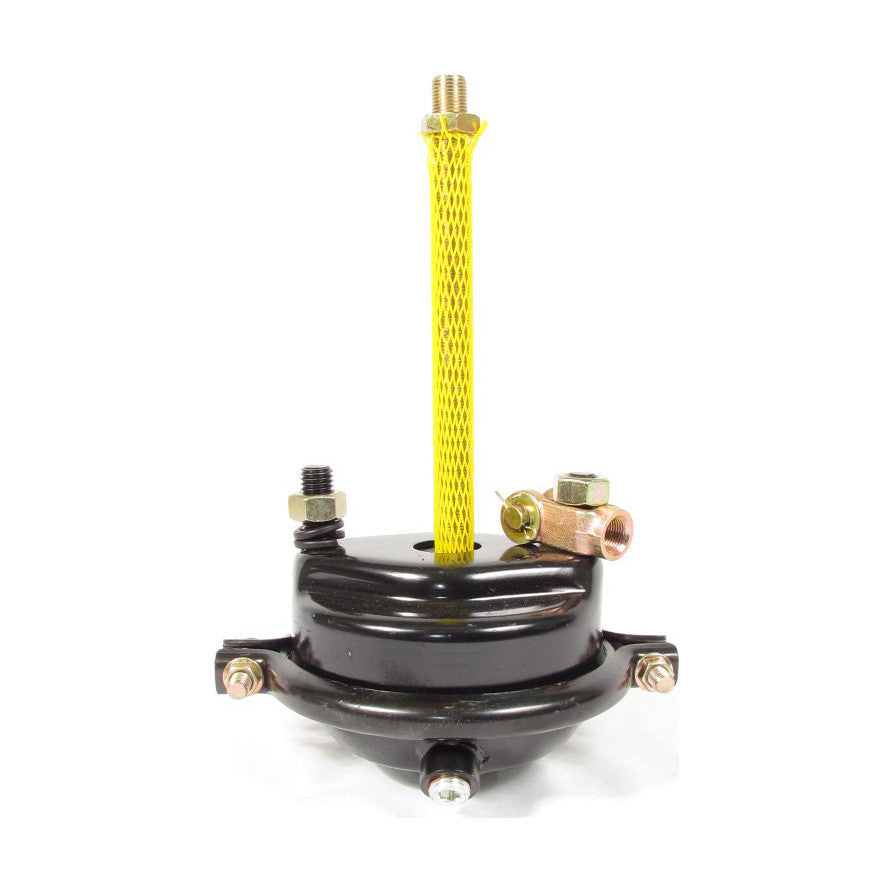

- Part: Service Chamber Assembly
- Chamber Type: Brake Chamber
- Air Port Position: 90°
- Clevis: Threaded
- Diaphragm Type: Single
- Finish: Powder Coated
- Model: Type 16
- Outside Diameter: 4.59″
- Push Rod Length: 10″
- Stroke Type: Standard
- Stroke Length: 2 1/4″
- Stud Distance: 3″
- Thread Diameter: 1/2″ – 20 UNF
- Notes: Brake service chamber for S-Cam brakes
CrossReference:
- Automann: 179.SC16
- Bendix: 800823, 288799
- Euclid: E-16S, E-BC16S
- Flagg: 16S
- Haldex: SC16
- Meritor: R870016
- Velvac: 30015
Manufacture Standards:
Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.
Our air brake components have been passed the following tests:
- Salt spray test
- Leak tightness
- Endurance test
