Description
Specifications:

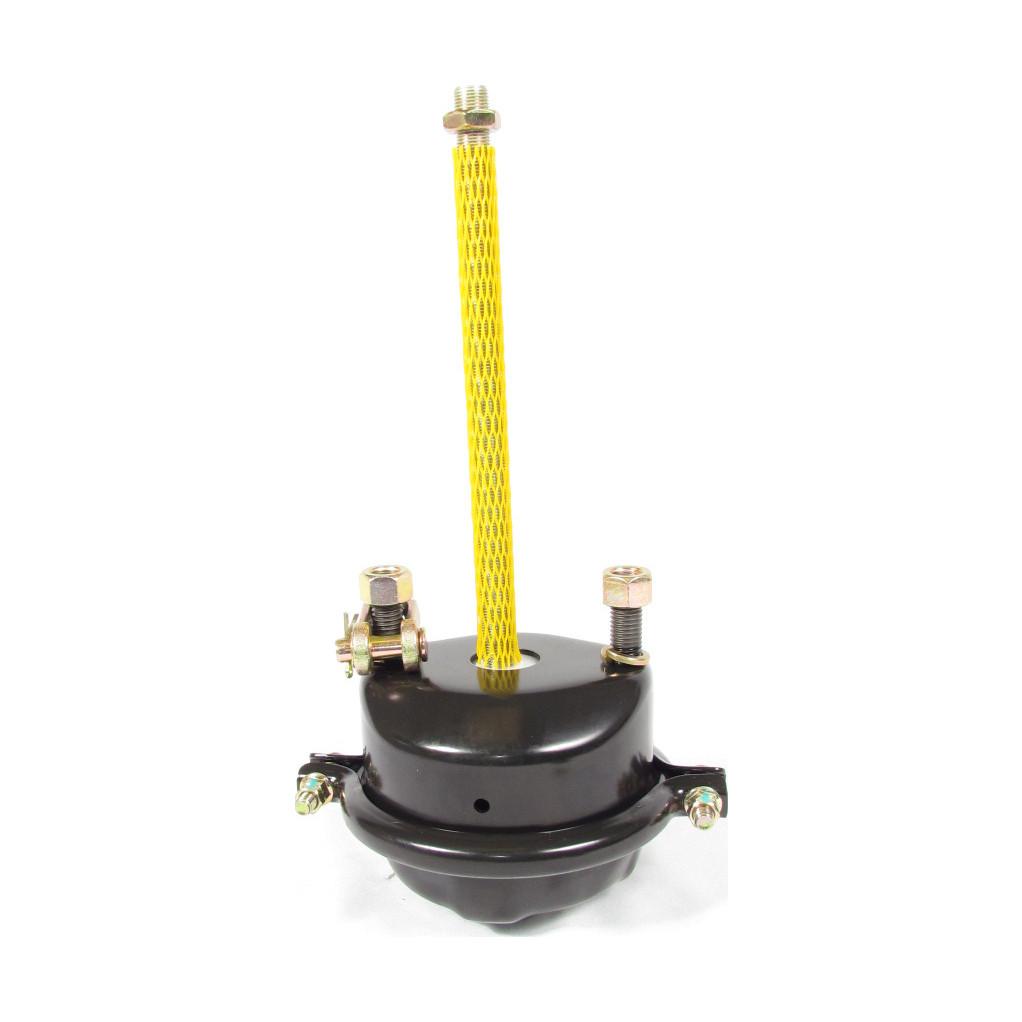

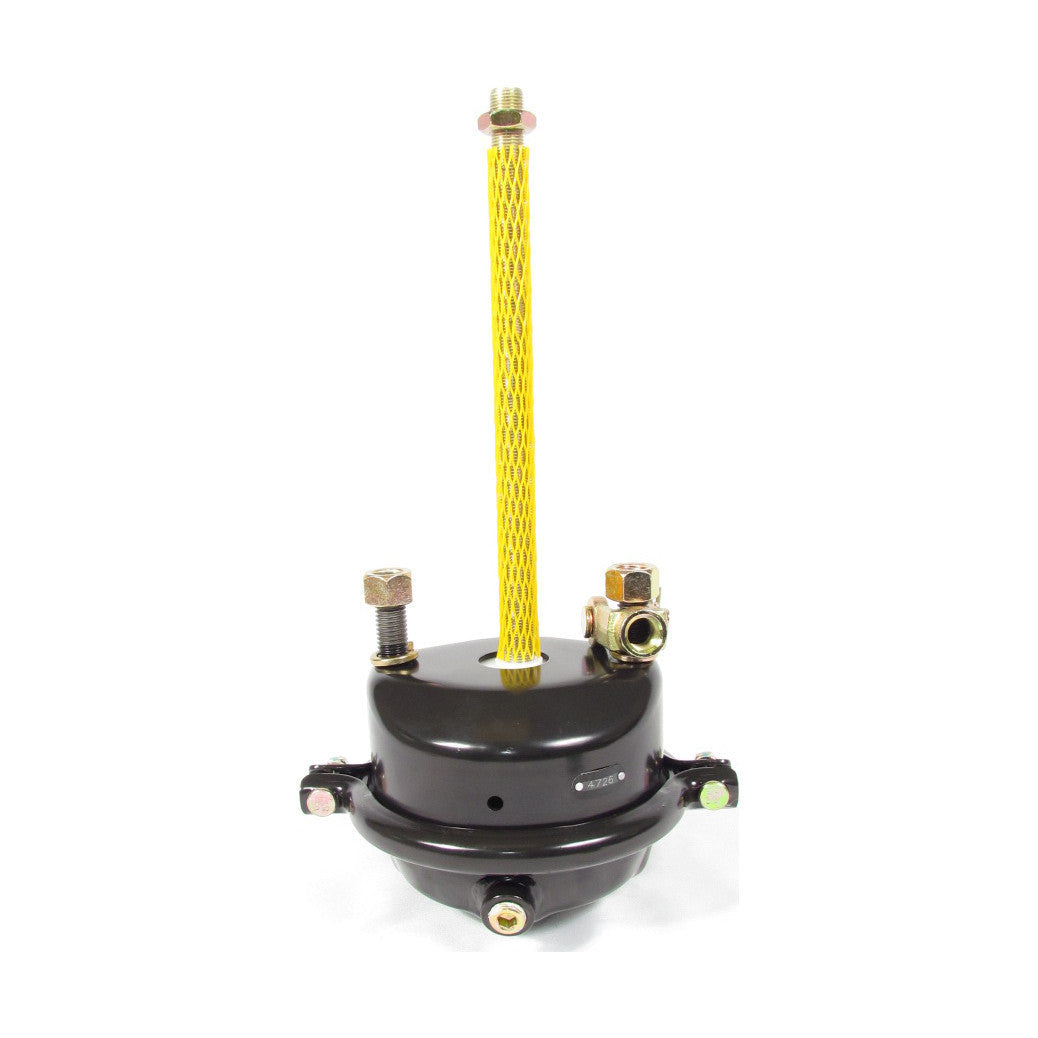

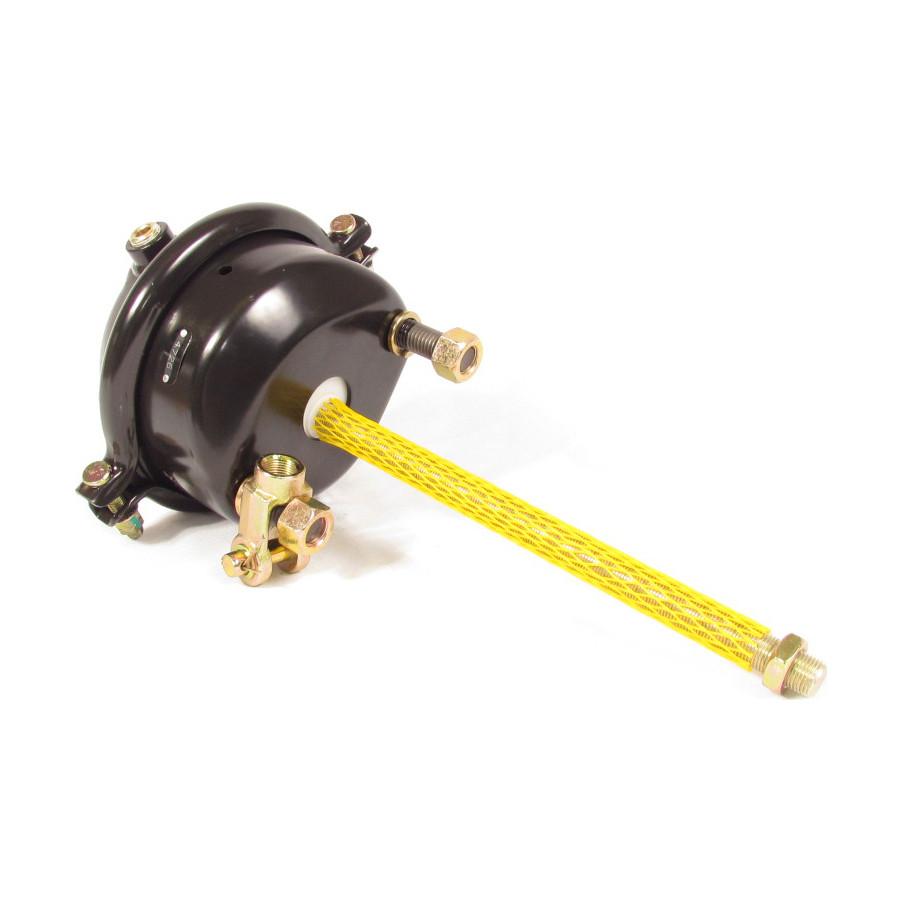

- Part: Service Chamber Assembly
- Chamber Type: Brake Chamber
- Air Port Position: 90°
- Clevis: Threaded
- Diaphragm Type: Single
- Finish: Powder Coated
- Model: Type 20
- Outside Diameter: 7″
- Push Rod Length: 10.20″
- Stroke Type: Standard
- Stroke Length: 2 1/4″
- Stud Distance: 4 3/4″
- Thread Diameter: 5/8″-18 UNF
- Notes: Brake service chamber for S-Cam brakes
CrossReference:
- Automann: 179.SC20
- Bendix: 288803
- Euclid: E-20S, E-BC20S
- Flagg: 20S
- Haldex: SC20, KN36200
- Meritor: R870020
- Velvac: 30017
Manufacture Standards:
Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.
Our air brake components have been passed the following tests:
- Salt spray test
- Leak tightness
- Endurance test
