Description
Highlights:
- Rugged Service Housing. 9 Gauge Steel and Powder-coated Finish for High Resistance to Fatigue and Corrosion
- Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards.
- Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
- Standard Stroke with Length: 2 1/4″
- Type 24/24 – Push Rod Length: 9 5/8″
Specifications:

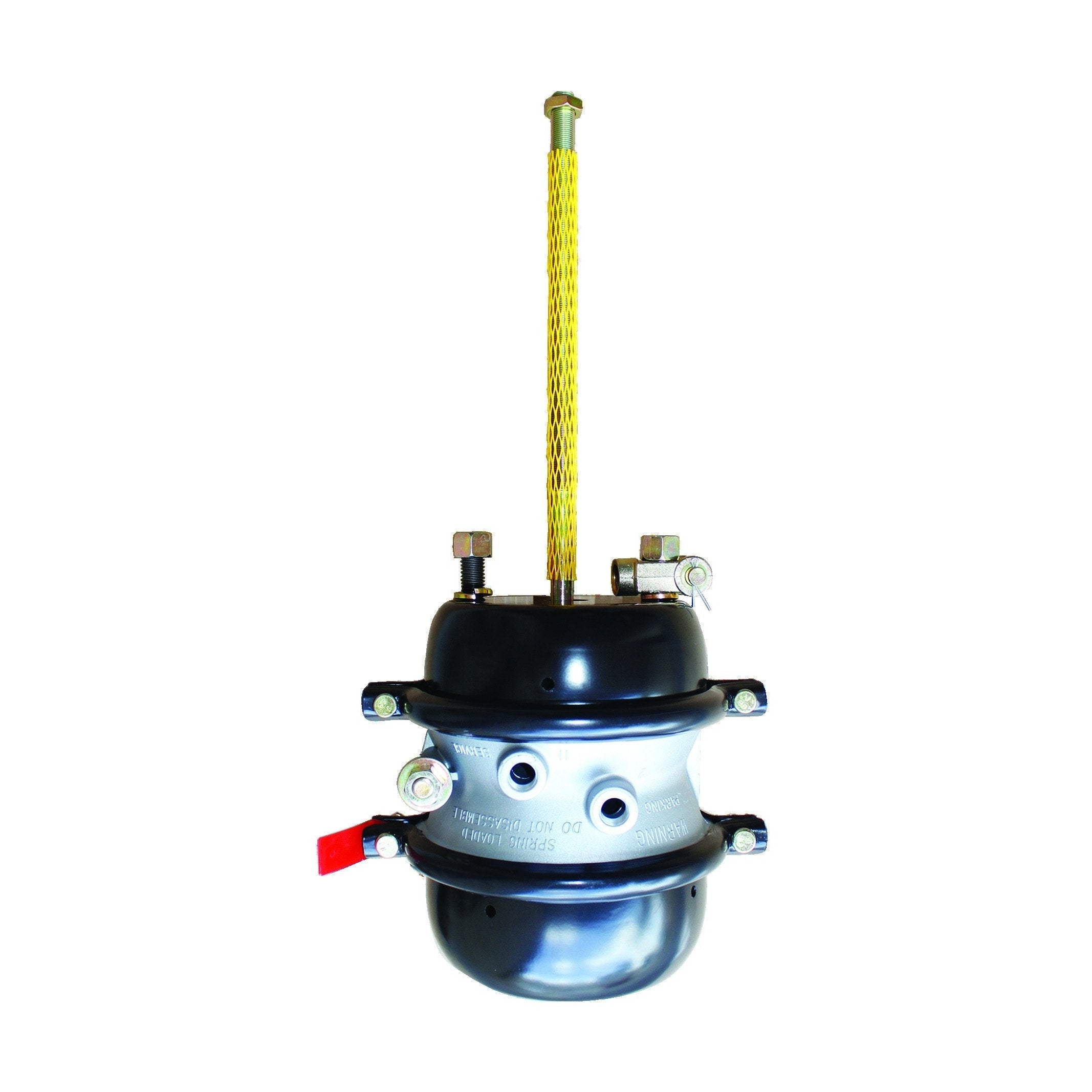

- Part: Air Brake Chamber
- Part Type: 24/24
- Part Series: GoldSeal
- Air Port Position: 0°
- Air Port Thread Diameter: 3/8-18 NPT
- Bracket to End of Spring Housing Length: 8.8″
- Clevis: Threaded
- Finish: Powder Coated
- Thread Diameter: 5/8″-18 UNF
- Push Rod Diameter: 5/8-18 UNF
- Push Rod Length: 9 5/8″
- Service Chamber Size: 24/24
- Stroke Type: Standard
- Stroke Length: 2 1/4″
- Stud Distance: 4 3/4″
- Notes: Sealed
CrossReference:
- Bendix: NT2430STD78
- Euclid: E-GC2424
- Fleetpride: FLTC2424SB20
- Flagg: 2424GC
- Haldex: GC2424
- Mack: 19QE410A
Manufacture Standards:
Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.
Our air brake components have been passed the following tests:
- Salt spray test
- Leak tightness
- Endurance test
