Description
Highlights:
- Very Important: Please Verify this product Description and Compatibility before Buying
- It is strongly recommended to make Tie Rod Ends checked out to avoid wheels come out of alignment which can lead to uneven or excessive tire wear
- Built on High Strength Materials to ensure long term reliability
- Exceeds OEM quality standards

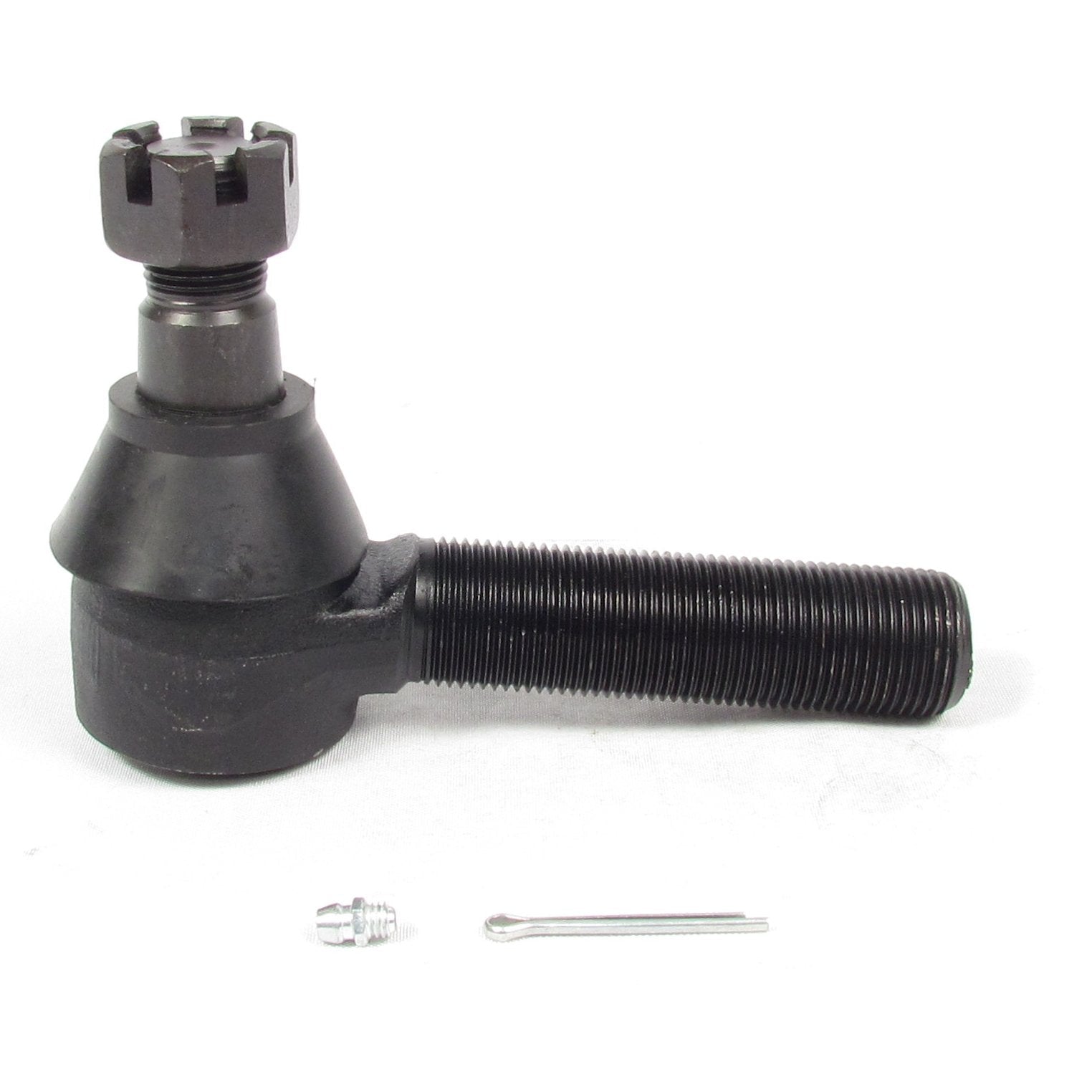

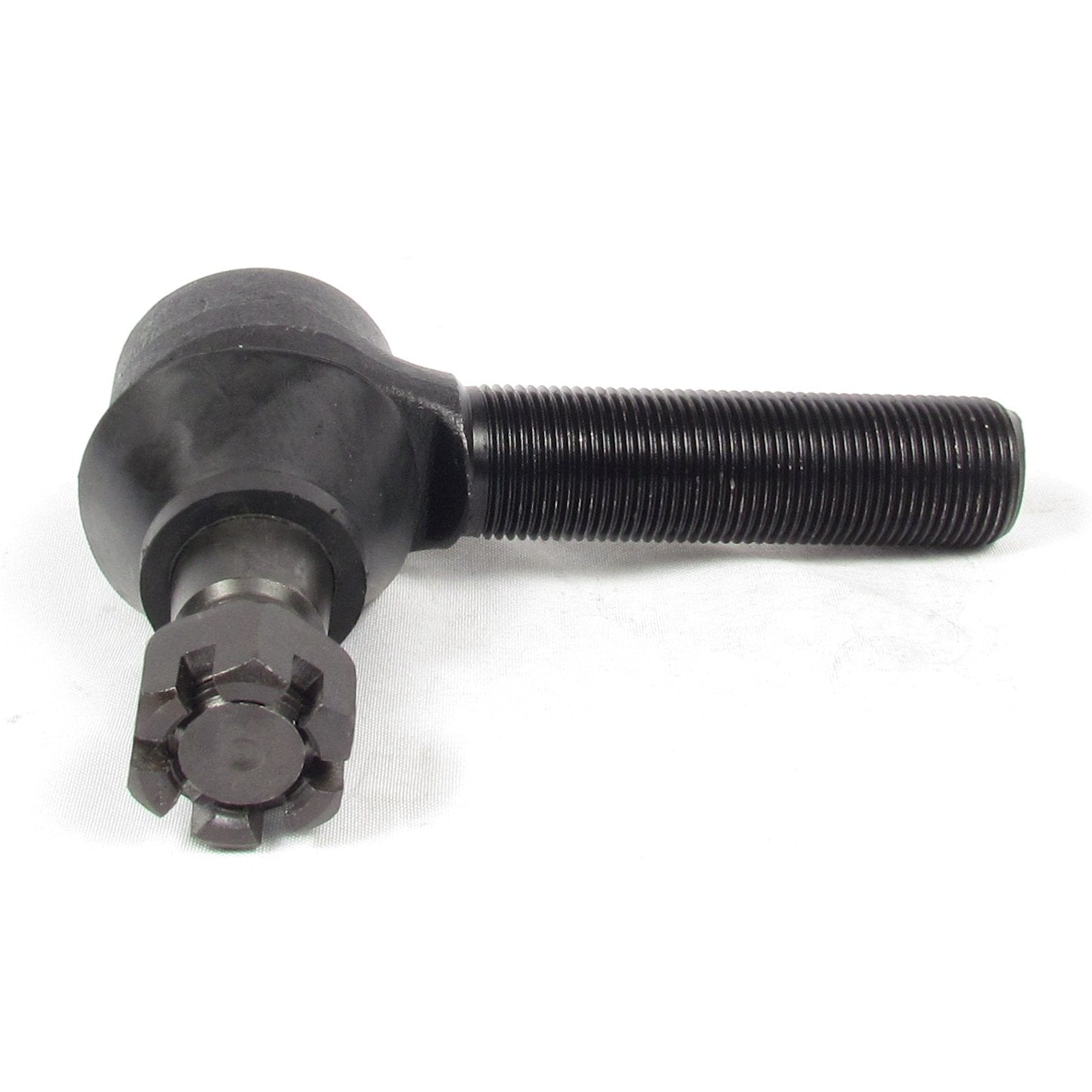

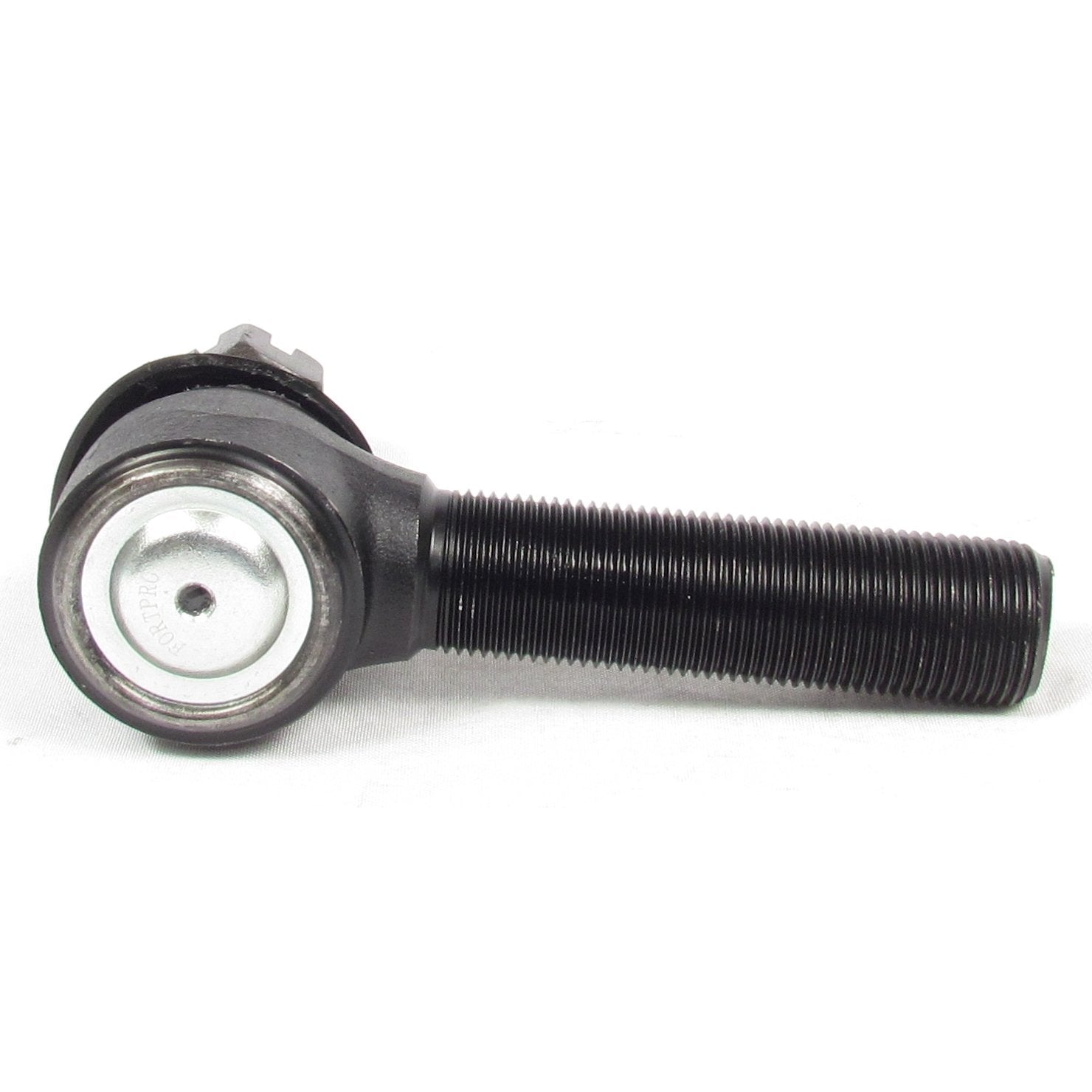

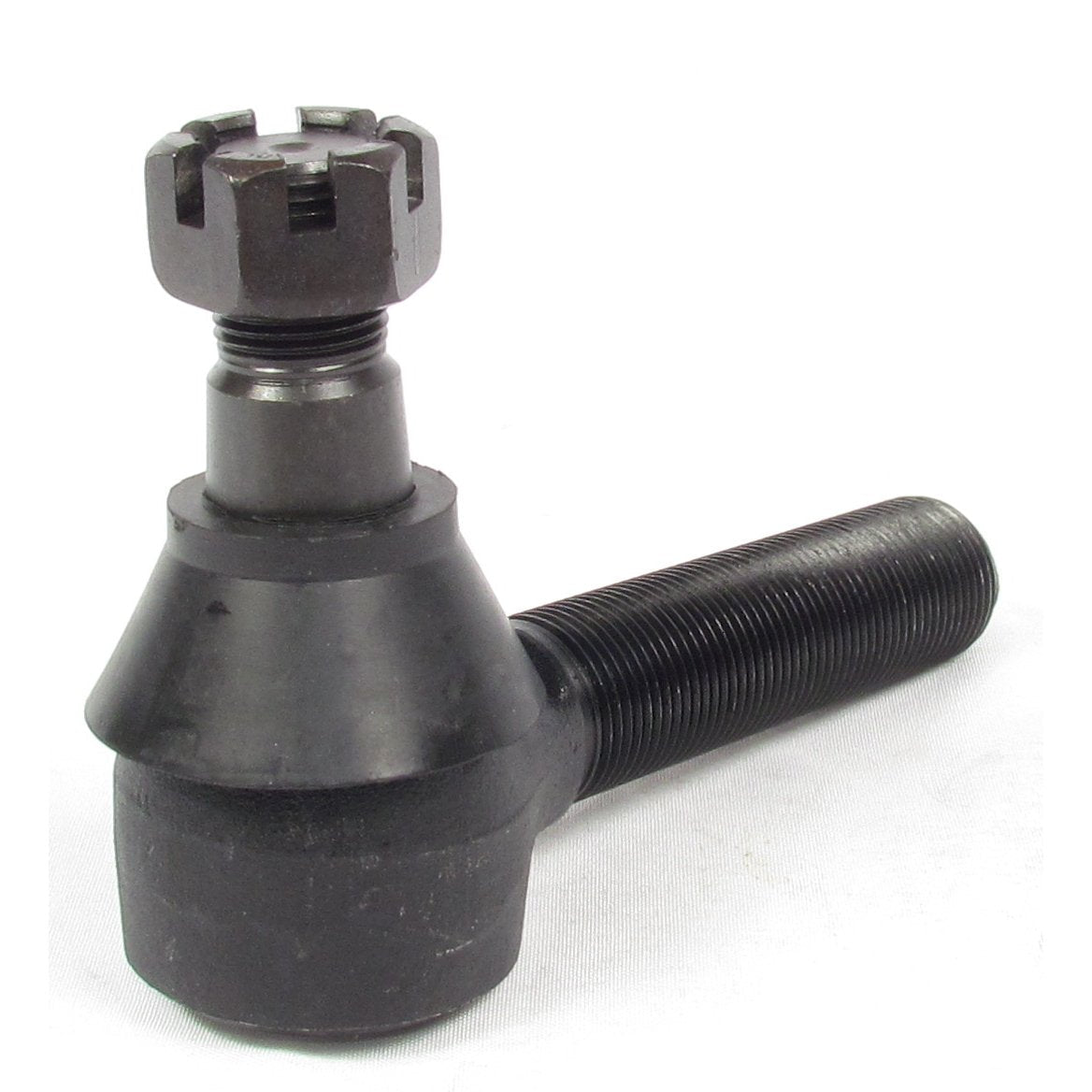

- Replacement for Meritor R230069 Tie Rod End
Specifications:
- Part OEM: Meritor R230069
- Large Taper Diameter: 1.102 in.
- Rod Thread Diameter: 1.125 in.
- Rod Threads per Inch: 12
- Rod Thread Direction: RH
- Notes: Zerk on bottom
- Small Taper Diameter: 0.967 in.
- Stud Center to Rod End: 5.44 in.
- Stud Thread Diameter: 0.875 in.
- Stud Threads per Inch: 14
- Style: Curbside
- Taper Length: 1.08 in.
- Meritor: R230068
- Dana: SP692244, 140TR110
- Dayton Parts Batco: 310223
- Eaton: L24SV5042A12, 1006148, 1006149
- Federal Mogul: ES3218R, ES423R, L24SV4000H11, L24SV5042A14
- Flagg: ES423R
- Marmon: A3144D524, L24SV5042A12
CrossReference:
- Meritor: R230068
- Dana: SP692244, 140TR110
- Dayton Parts Batco: 310223
- Eaton: L24SV5042A12, 1006148, 1006149
- Federal Mogul: ES3218R, ES423R, L24SV4000H11, L24SV5042A14
- Flagg: ES423R
- Marmon: A3144D524, L24SV5042A12
